Bolt On Tube Clamps - Weldable
Bolt On Tube Clamps - Weldable
Bolt On Tube Clamps - Weldable
Bolt On Tube Clamps - Weldable
Bolt On Tube Clamps - Weldable
Bolt On Tube Clamps - Weldable
Bolt On Tube Clamps - Weldable
Bolt On Tube Clamps - Weldable

Bolt On Tube Clamps - Weldable

$22.99 Sale Save
Tube Size 1.50"

Use these tube clamps to fabricate add on components to your frame or FASTLAB products.  Available for 2.00" , 1.875" (Stock Can-am Cage), 1.75", and 1.5" tube

 Specs:

1-1/2" Tube Clamps:

-Clamp I.D. = 1-7/16"(undersized for great clamping strength.)

-Clamp O.D. = 2-1/4"

-Clamp Thickness= 3/8"

-Overall Length = 2-1/4"

1-3/4" Tube Clamps:

-Clamp I.D. = 1-3/4"

-Clamp O.D. = 2-1/2"

-Clamp Thickness= 3/8"

-Overall Length =1-3/4"

1-3/4" LONG Tube Clamps:

-Clamp I.D. = 1-3/4"

-Clamp O.D. = 2-1/2"

-Clamp Thickness= 3/8"

-Overall Length =2-3/4"

1-7/8" Tube Clamps:

-Clamp I.D. = 1-13/16"

-Clamp O.D. = 2-5/8"

-Clamp Width- 2-3/4" Plenty of room for mitered tubes

-Clamp Thickness= 3/8"

2" Tube Clamps:

-Clamp I.D. = 1-15/16"

-Clamp O.D. = 3"

-Clamp Width- 2-7/8" Plenty of room for mitered tubes

-Clamp Thickness= 3/8"

Customer Reviews

Based on 8 reviews
100%
(8)
0%
(0)
0%
(0)
0%
(0)
0%
(0)
z
z.b.
Solid product

I purchased some tube clamps. They arrived fast and are good quality.

B
Bobby Lung
Perfect title description

Very well made and perfect for my project

B
Brian Huber
will buy again

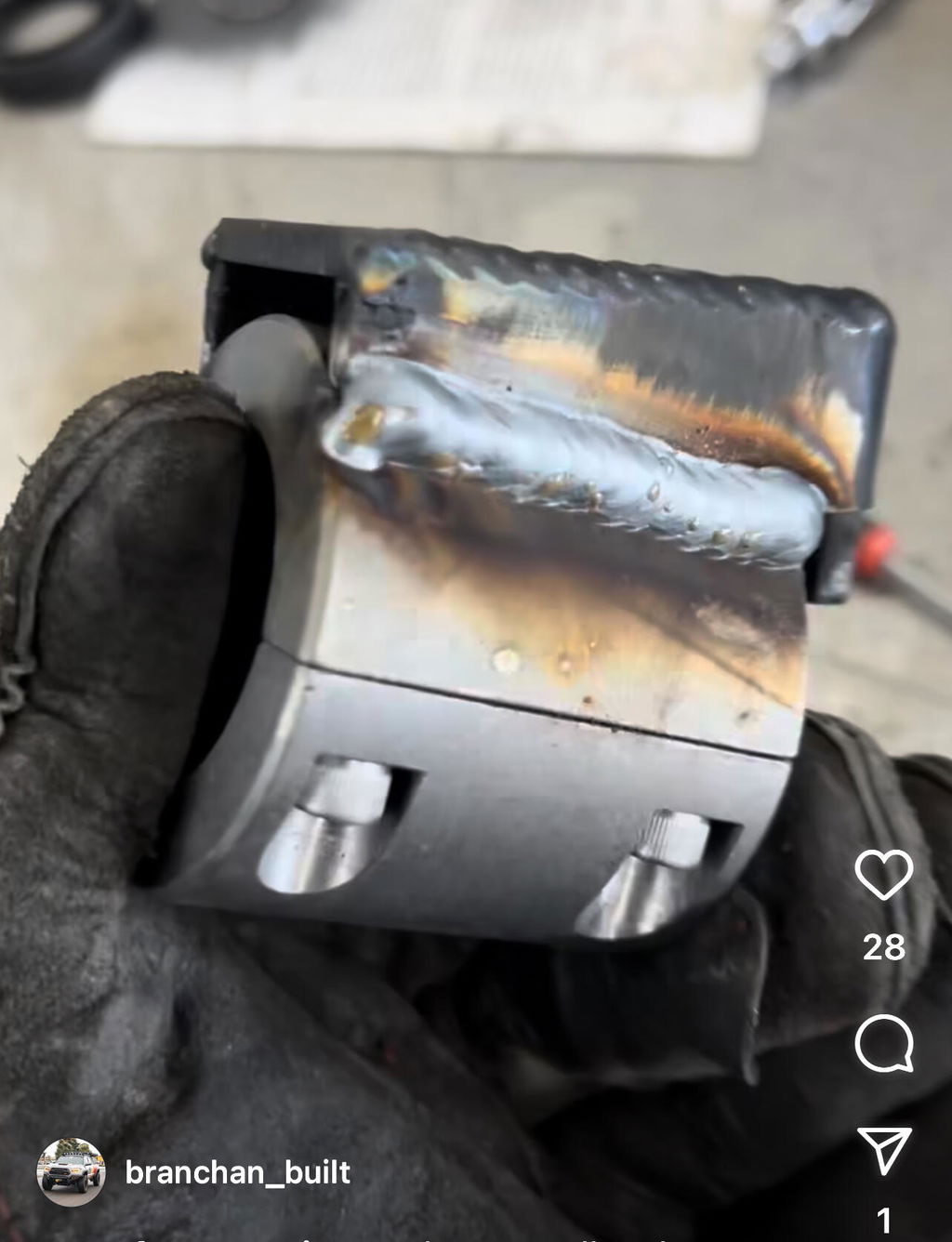

These were exactly as discribed and not covered in Cosmoline rust inhibitor when i got them. I was told they were manufactured here in the USA so no need for the rust inhibitor like the others i looked at which had to make the trip over the salty seas in the container from CHINA ! Keep up the good work fastlab. I clamped these on to the main uprights and tig welded a bar across behind the rear seats for anchoring of shoulder belts to 5 point harness. Sorry no pictures, i am a fabricator not a tech guy.

B
Brandon Chandler
Fantastic Clamp

Ended up using this for an Offroad high end stabilizer on my ford f250. Well made and did exactly what I want. I’ll be returning for more parts in the future. Thanks

G
Gary Fish

Good
